Plant Indentification Tool
Menu:
Small Footway Boxes
The boxes that are in this category are those that generally contain small customer connections. The old type were made of concrete with a concrete lid whereas the current is of fibreglass construction with a steel lid.
All sizes are approximate.
 |
 |
 |
JB21 31x41cm |
JB22 41x61cm |
JB23 28x50cm |
Medium Single lid footway boxes
There is only one size of cover that falls in this category but it has two applications, this lid can be found on a fibreglass preformed box, JB26, as well as a concrete / brick chamber, JF2. As with the JB 23 above the JB26 will have a thin white edge around the cover whereas the JF2 has a fillet.
 |
 |

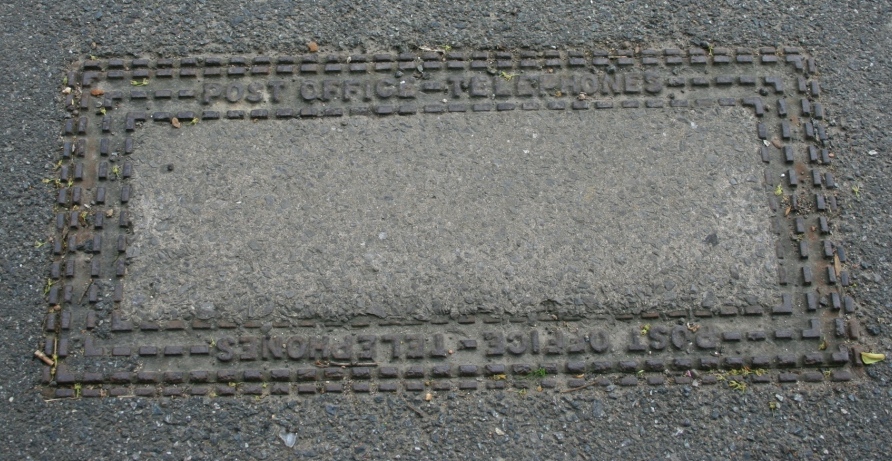

Old style Cast Iron and Concrete 34x80cm |
JF2 / JB26 34x80cm |
